How to check Active Directory Health



What is Active Directory?

Active Directory (AD) is a directory service that runs on Microsoft Windows Server.

The main function of Active Directory is to enable administrators to manage permissions and control access to network resources.

In Active Directory, data is stored as objects, which include users, groups, applications, and devices, and these objects are categorized according to their name and attributes.

Active Directory Services

Active Directory Domain Services (ADDS): are the core component of Active Directory and provide the primary mechanism for authenticating and access authorization.

Lightweight Directory Services (LDAP)

Certificate Services (CS)

Active Directory Federation Services (ADFS)

 Hierarchical Structure of ADDS

1-    Logical

·         Object

·         Organizational Units &containers (not possible to link a Group Policy Object (GPO) to a container)

·         Domains

·         Trees

·         Forests

2-    Physical

·         Domain Controllers

·         Sites

·         Replication Within a Site

 LDAP VS AD

PARAMETER	LDAP	AD
Abbreviation	Lightweight Directory Access Protocol	Active Directory
Philosophy	An application protocol for querying and modifying items in directory service providers like Active Directory, which supports a form of LDAP.	Active Directory is a database-based system that provides authentication, directory, policy, and other services in a Windows environment. It is a centralized hierarchical directory database which contains information of all user accounts in the network.
Functionality	LDAP is one of the protocols you can use to communicate with Active directory	AD is a directory services database
Standard	LDAP is a standard	AD is Microsoft's proprietary

AD VS DC

AD: Identity and access management directory services.

DC: Hardware Server that hold and manage AD.

 AD files:

Active directory database uses the “Extensible Storage Engine (ESE)” which is an indexed and sequential access method (ISAM) database.

It is uses record-oriented database architecture which provides extremely fast access to records. ESE indexes the data in the database file. This database file can grow up to 16 terabyte and hold over 2 billion records.

·         Ntds.dit: active directory database file, where all the active directory data stored.

·         Edb.log: transaction log files to store the directory transaction before write in to the database file, each of them is 10mb or less in size.

·         Edb.chk: file to keep track of data transaction committed into database from log files (Edb*.log).

·         Temp.edb: This is used during the active directory database maintenance to hold data and also to store info about large in-progress AD data transactions.

·         Res1.log and Res2.log: Even we can’t see it in this example this is a file type which will store log entries if edb.log file full.

SYSVOL:

The SYSVOL folder is a shared on an NTFS volume on all the domain controllers within a particular domain.

SYSVOL is used to deliver the policy and logon scripts to domain members.

By default, SYSVOL includes 2 folders:

·         Policies

Default location:  %SystemRoot%\SYSVOL\SYSVOL\<domain_name>\Policies

·         Scripts

Default location:  %SystemRoot%\SYSVOL\SYSVOL\<domain_name>\scripts

Note:  These default locations can be changed during the DC setup.

**************************************************************************************************

How to check Active Directory Health

1-    Microsoft Best Practices Analyzer (BPA)

BPA is a server management tool that is available in Windows Server® 2008 R2.

BPA can help administrators reduce best practice violations by scanning one or more roles that are installed on Windows Server (2008 R2 or Later), and reporting best practice violations to the administrator.

If you have a problem in configuration You will get Errors or Warning. for each you can find a short description and a link for how to fix.

2-    DCDiag tool

Microsoft command-line utility that can be used to check the health of Active Directory domain controllers.

It is also used to diagnose DNS servers, AD replication, and other critical domain services within your Active Directory infrastructure.

To check ADDS Run these commands in the PowerShell console

dcdiag /e /v /q

Dcdiag /e  | select-string -pattern '\. (.*) \b(passed|failed)\b test (.*)'

/a    Tests all the servers on this site.

/e    Tests all the servers in the enterprise. Overrides /a.

/v    Verbose. Prints extended information.

Q     Quiet. Prints only error messages.

 you should see (Passed) in all testes which means every thing is good

To check DNS run these commands in the PowerShell console

DCDiag /Test:DNS /e /v

you should see (PASS) in all testes which means every thing is good

To fix DNS issues run these commands in the PowerShell console

(Replace dc01.test.com with DC FQDN)

DCDiag /Test:DNS /e /v /s:dc01.test.com /fix

Then on all domain controllers run the command:

ipconfig /registerdns

 To check if Netlogons is working correctly run these commands in the PowerShell console

dcdiag /test:netlogons

 You should see (Passed test Netlogons).

 3-    Make sure that all the dependency services are running properly.

There are four system components that are critical for the efficient running of Active Directory Domain Services:

1)    DFS Replication, 2) DNS Server, 3) Intersite Messaging, and 4) Kerberos Key Distribution Center.

Run these commands in the PowerShell console

$Services='DNS','DFS Replication','Intersite Messaging','Kerberos Key Distribution Center','NetLogon',’Active Directory Domain Services’

ForEach ($Service in $Services) {Get-Service $Service | Select-Object Name, Status}

 You should see all services (Running)

Also, you can check the state of ADDS basic services on a domain controller using

Get-Service -name ntds,adws,dns,dnscache,kdc,w32time,netlogon,DFSR,IsmServ

4-    Repadmin Tool

Repadmin is a replication diagnostic tool.

run these commands in the PowerShell console

repadmin /replsum

  You should see the largest delta value should be less than one hour (depends on the AD topology and intersite replication frequency settings), and fails or errors equal zero.

To Show more details on replication run these commands in the PowerShell console

repadmin /showrepl

  You should see all replications (was successful) with no errors.

To force synchronization run these commands in the PowerShell console

Repadmin /syncall

  You should see (replication completed and SyncAll terminated with no errors) with no errors.

To view the replication queue:

Repadmin /queue

  You should see (Queue contain 0 items).

5-    Detect unsecure LDAP binds:

The first step towards mitigating the vulnerability of unsecure LDAP binds is to identify whether you are affected, which you can do by looking through event ID 2887. Event 2887 is logged by default in the DC once every 24 hours, and it shows the number of unsigned and cleartext binds to the DC. Any number greater than zero indicates your DC is allowing unsecure LDAP binds.

 Next, you need to detect all devices and applications using unsecure binds by looking through event ID 2889. Event 2889 is logged in the DC each time a client computer attempts an unsigned LDAP bind. It displays the IP address and account name of the computer that attempted to authenticate over an unsigned LDAP bind.

run these commands in the PowerShell console.

Get-WinEvent -FilterHashtable @{

                LogName = 'Security'

                    ID = 2887

                }

Get-WinEvent -FilterHashtable @{

                LogName = 'Security'

                    ID = 4719

                }

  You should see (No events were found) for events IDs: 2887 &2889.

6-   Active Directory Events to Monitor

Monitoring the directory service is essential for preventing cyber-attacks and delivering the best end-user experience to your users.

Below a list of the most important network events that you should look out for. If you see any of these events then you should investigate further ASAP to make sure that your service hasn’t been compromised.

4618 - A security event pattern has been recognized.

4649 - A replay attack was detected (potentially a false positive).

4719 - A system audit policy was changed.

4765 - SID History added to an account.

4766 - The attempt failed to add SID History to account.

4794 - Attempt to launch Directory Services Restore Mode.

4897 - Role separation enabled.

4964 - Special groups have been assigned a new logon.

5124 - Security updated on OCSP Responder Service.

1102 - Audit log was cleared.

7-    Windows Time service tools (win32tm)

W32tm.exe tool used to configure Windows Time service (W32time) settings. You can also use W32tm.exe to diagnose problems with the time service.

Why time is important?

When a Windows server receives a Kerberos authentication request, it compares the timestamp in the request to its local time. If the difference between the local time and the timestamp is too big (within 5 minutes of each other – default setting), the authentication request is rejected and Kerberos authentication fails and users won’t be able to login.

*Besides that, the use of the correct time is also important for AD’s multi-master replication model used between all DCs, were timestamps are used to resolve AD replication conflicts.

To monitor run these commands in the PowerShell console

w32tm /monitor

  You should see (NTP offset equal zero or near  ).

 Active Directory Health using PowerShell script.

The Get-ADHealth.ps1 PowerShell script will check the health of your AD environment and provide you with a report that you can use to identify and resolve any issues:

·         Server

·         Site

·         OS Version

·         Operation Master Roles

·         DNS

·         Ping

·         Uptime (hrs)

·         DIT Free Space (%)

·         OS Free Space (%)

·         DNS Service

·         NTDS Service

·         NetLogon Service

·         DCDIAG: Advertising

·         DCDIAG: Replications

·         DCDIAG: FSMO KnowsOfRoleHolders

·         DCDIAG: FSMO Check

·         DCDIAG: Services

·         Processing Time

Download and place Get-ADHealth.ps1 PowerShell script on the Domain Controller C:\scripts folder. If you don’t have a scripts folder, create one.

Create Active Directory health report

To generate an Active Directory health report, go through the below steps:

1-    Sign in to a Domain Controller

2-    Run PowerShell as administrator

3-    Change directory path to C:\scripts

4-    Run .\Get-ADHealth.ps1 -ReportFile

PS C:\> cd C:\scripts

PS C:\scripts> .\Get-ADHealth.ps1 -ReportFile

This is how it looks in our example.

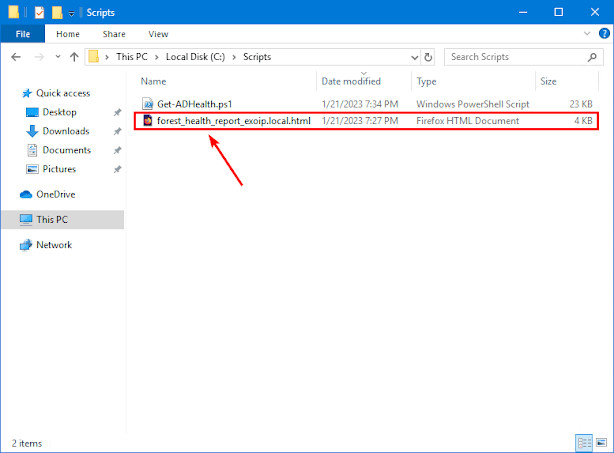

The Get-ADHealth.ps1 PowerShell script will generate an HTML report file. The file is generated in the same directory of the script. In this example, it’s the folder C:\scripts.
